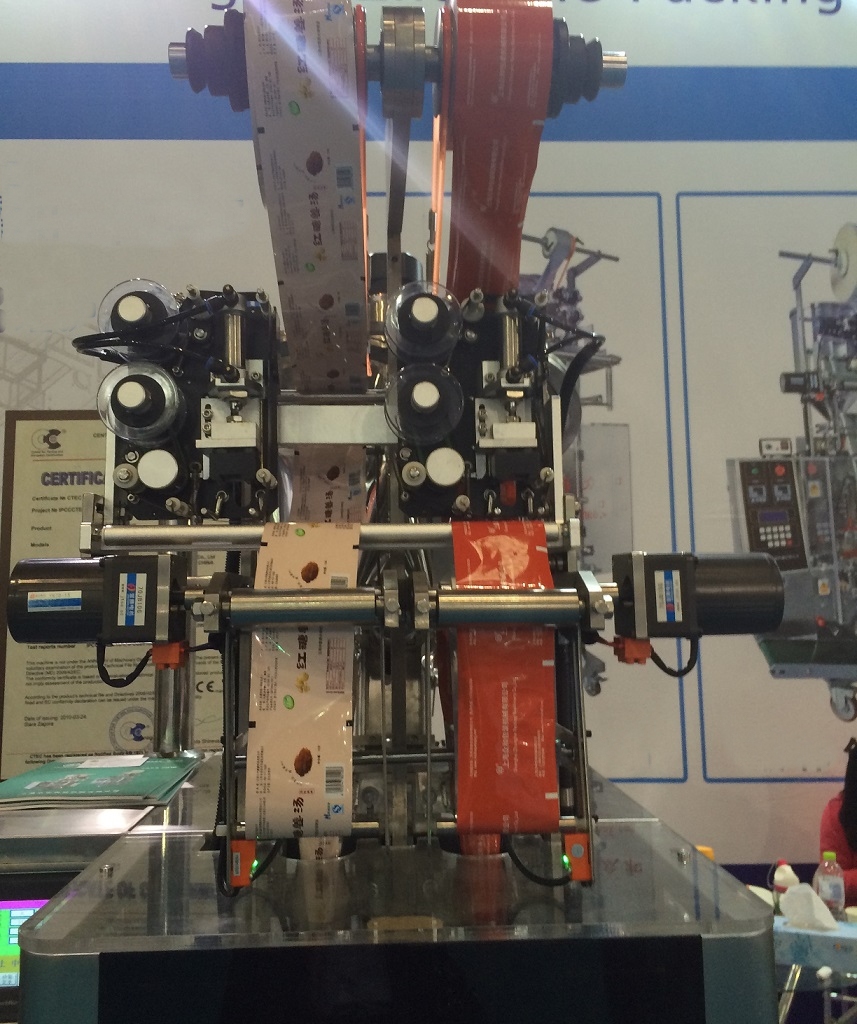

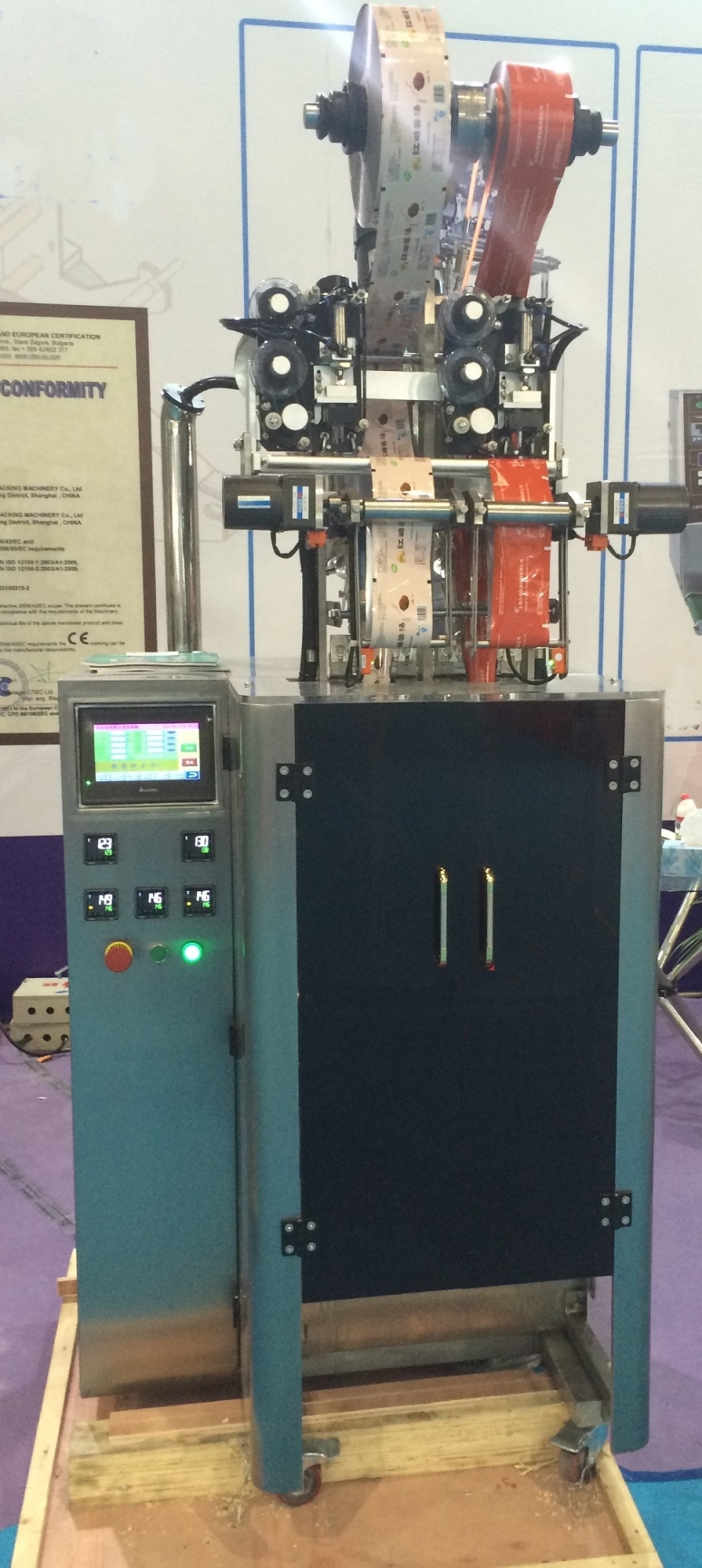

New Deluxe Double Lane Powder Packager

New Deluxe Double Lane Powder Packager
Includes Touch Screen Controls, Code Printer, pneumatic flat cut, Consturcted in 304 Stainless Steel.
Test Video Link: https://www.youtube.com/shorts/EnYrRrddyhs
Delivery: approx. 8 weeks from receipt of 65% deposit. (balance due prior to shipment from factory)
Specifications: Parameter: Remarks:
metering method One barrel with twin screw metering with vacuum feeding is sufficient
Range: 0-2 Grams, 3-10G, 10-20G, 20-35G (customer to specify)
Roll size ≤160mm / Film core size ≈76mm
Finished bag size: Standard bag length adjustable from 10 to 180 millimeters / Standard bag width 10-70 mm
*Changing the width of the bag requires replacing accessories such as rounded molds; Width change requires an upgrade
Packaging speed Up to approx. 60-80 bag/min (Depending on Product)
Electrics: 1 Phase / 60 Hertz / 110 Volts, 5.1Kw, CE, Air Required
Overall Dimensions: L: 1000 W: 960 H:2000MM , 550Kg (plexiglass cover added later)
Adapt to roll film: PET/PE or PET/AL/PE
Suitable for composite membranes, not for single membranes
